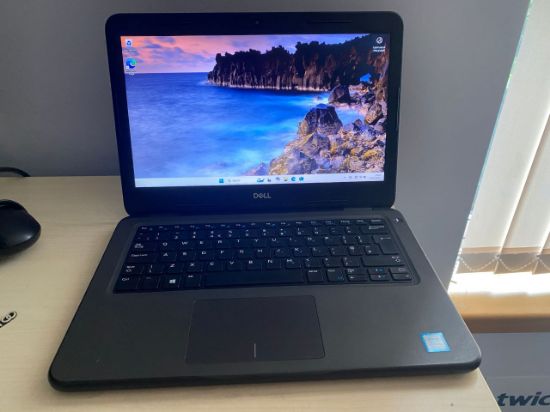

Dell Latitude 3310 i5-8th-Gen 8GB Ram 128GB M2 Win 11 Pro

https://dl.dell.com/content/manual21800025-dell-latitude-3310-setup-and-specifications.pdf?language=en-us

Dell Latitude 3310
Setup and Specifications
Regulatory Model: P95G
Regulatory Type: P95G002
March 2022
Rev. A02
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid
the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2019-2022 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries.
Other trademarks may be trademarks of their respective owners.
Chapter 1: Set up your Latitude 3310.............................................................................................4
Chapter 2: Chassis Overview.........................................................................................................6
Front view............................................................................................................................................................................. 6
Left view................................................................................................................................................................................ 7
Right view..............................................................................................................................................................................7
Base view...............................................................................................................................................................................8
Palmrest view....................................................................................................................................................................... 9
Chapter 3: Keyboard shortcuts.................................................................................................... 10
Chapter 4: Specifications of Latitude 3310................................................................................... 11
Dimensions and weight......................................................................................................................................................11
Processors............................................................................................................................................................................11
Chipset..................................................................................................................................................................................12
Operating system...............................................................................................................................................................12
Memory.................................................................................................................................................................................12
Ports and connectors........................................................................................................................................................13
Communications.................................................................................................................................................................13
Audio..................................................................................................................................................................................... 14
Storage................................................................................................................................................................................. 14
Media-card reader............................................................................................................................................................. 15
Keyboard.............................................................................................................................................................................. 15
Camera................................................................................................................................................................................. 15
Touchpad............................................................................................................................................................................. 16
Power adapter.................................................................................................................................................................... 16
Battery.................................................................................................................................................................................. 17
Display...................................................................................................................................................................................18
Video..................................................................................................................................................................................... 19
Computer environment.....................................................................................................................................................19
Chapter 5: Getting help and contacting Dell................................................................................ 20
Contents
Contents 3
Set up your Latitude 3310
1. Connect the power adapter and press the power button.
NOTE: To conserve battery power, the battery might enter power saving mode. Connect the power adapter and press
the power button to turn on the computer.
2. Finish operating system setup.
For Windows:
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
● Connect to a network for Windows updates.
NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when
prompted.
● If connected to the internet, sign-in with or create a Microsoft account. If not connected to the internet, create an
offline account.
● On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended.
Table 1. Locate Dell apps
Resources Description
Dell Product Registration
Register your computer with Dell.
Dell Help & Support
Access help and support for your computer.
1
4 Set up your Latitude 3310
Table 1. Locate Dell apps (continued)
Resources Description
SupportAssist
SupportAssist is the smart technology that keeps your computer running at its best by optimizing
settings, detecting issues, removing viruses and notifies when you need to make system
updates. SupportAssist proactively checks the health of your system's hardware and software.
When an issue is detected, the necessary system state information is sent to Dell to begin
troubleshooting. SupportAssist is preinstalled on most of the Dell devices running Windows
operating system. For more information, see SupportAssist for Home PCs User's Guide on
www.dell.com/serviceabilitytools.
NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
Dell Update
Updates your computer with critical fixes and latest device drivers as they become available.
For more information about using Dell Update, see the knowledge base article 000149088 at
www.dell.com/support.
Dell Digital Delivery
Download software applications, which are purchased but not pre-installed on your
computer. For more information about using Dell Digital Delivery, see the knowledge
base article https://www.dell.com/support/kbdoc/000128904/how-do-i-use-dell-digital-delivery at
https://www.dell.com/support/home/.
4. Create recovery drive for Windows.
NOTE: It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows.
Set up your Latitude 3310 5
Chassis Overview
This chapter consists of the product view features along with technical specifications. The chassis overview features calls out
the different ports, connectors, and components available in the computer.
Topics:
• Front view
• Left view
• Right view
• Base view
• Palmrest view
Front view
1. Camera 2. Camera status light
3. Microphone 4. LCD Panel
2
6 Chassis Overview
Left view
1. Power connector 2. USB Type-C port
NOTE: Cleleron processors does not support Type-C
port.
3. Network port 4. HDMI port
5. USB 3.1 port
Right view
1. Audio port 2. Battery status light
3. microSD port 4. USB 3.1 port
5. Wedge-shaped lock slot
Chassis Overview 7
Base view
1. System fan vent 2. Heatsink vent
3. SSD vent 4. Service tag
5. Speakers
8 Chassis Overview
Palmrest view
1. Power button
2. Keyboard
3. Touchpad
Chassis Overview 9
Keyboard shortcuts
NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts
remain the same across all language configurations.
Table 2. List of keyboard shortcuts
Keys Description
Fn + F1 Mute audio
Fn + F2 Decrease volume
Fn + F3 Increase volume
Fn + F4 Mic Mute
Fn + F5 Num Lock
Fn + F6 Scroll Lock
Fn + F8 Display Toggle (Win + P)
Fn + F9 Search
Fn + F11 Print Screen
Fn + F12 Insert
Fn + Home Toggle Wireless On/Off
Fn + End Sleep
Fn + Ctrl open application
Fn + Esc Toggle Fn-key lock
Fn + Up arrow Increase brightness
Fn + Down arrow Decrease brightness
3
10 Keyboard shortcuts
Specifications of Latitude 3310
Topics:
• Dimensions and weight
• Processors
• Chipset
• Operating system
• Memory
• Ports and connectors
• Communications
• Audio
• Storage
• Media-card reader
• Keyboard
• Camera
• Touchpad
• Power adapter
• Battery
• Display
• Video
• Computer environment
Dimensions and weight
Table 3. Dimensions and weight
Description Values
Height:
Front 22.30 mm (0.88 in.)
Rear 22.30 mm (0.88 in.)
Width 329.60 mm (12.98 in.)
Depth 230.45 mm (9.07 in.)
Weight 3.52 lbs (1.59 kg)
NOTE: The weight of your computer depends on the configuration
ordered and the manufacturing variability.
Processors
Table 4. Processors
Description Values
Processors Intel Celeron-4205U Intel Pentium-5405U Intel Core i3-8145U Intel Core i5-8265U
Wattage 15 W 15 W 15 W 15 W
4
Specifications of Latitude 3310 11
Table 4. Processors (continued)
Description Values
Core count 2 2 2 4
Thread count 2 4 4 8
Speed Up to 1.8 GHz Up to 2.3 GHz Up to 3.9 GHz Up to 3.9 GHz
Cache 2 MB 2 MB 4 MB 6 MB
Integrated graphics Intel UHD Graphics
610]
Intel UHD Graphics
610
Intel UHD Graphics 620 Intel UHD Graphics 620
Chipset
Table 5. Chipset
Description Values
Processors Intel Celeron DC/Pentium DC Intel Core i3/i5
Chipset Whiskey Lake Whiskey Lake
DRAM bus width 64-bit 64-bit
PCIe bus Up to Gen 2.0 Up to Gen 3.0
Operating system
Your Latitude 3310 supports the following operating systems:
● Windows 11 Home, 64-bit
● Windows 11 Home National Academic, 64-bit
● Windows 11 Pro, 64-bit
● Windows 11 Pro National Academic, 64-bit
● Windows 10 Pro, 64-bit
Memory
The following table lists the memory specifications of your Latitude 3310:
Table 6. Memory specifications
Description Values
Slots 1 SO-DIMM slot
Type Single channel DDR4
Speed 2133 MHz for Intel Celeron DC/ Pentium DC MHz, 2400 MHz
for Intel Core i3/i5
Maximum memory 16 GB
Minimum memory 4 GB
Memory size per slot 4 GB, 8 GB, 16 GB
12 Specifications of Latitude 3310
Table 6. Memory specifications (continued)
Description Values
Configurations supported ● 4 GB DDR4 (1 x 4 GB) [2133 MHz for Intel Celeron DC/
Pentium DC, 2400 MHz for Intel Core i3/i5]
● 8 GB DDR4 (1 x 8 GB) [2133 MHz for Intel Celeron DC/
Pentium DC, 2400 MHz for Intel Core i3/i5]
● 16 GB DDR4 (1 x 16 GB) [2133 MHz for Intel Celeron DC/
Pentium DC, 2400 MHz for Intel Core i3/i5]
Ports and connectors
Table 7. External ports and connectors
Description Values
External:
Network One RJ-45 port
USB ● Two USB 3.1 Gen1 ports
● One USB 3.1 Gen1 (Type-C) ports with DisplayPort
Audio One Universal audio jack
Video 1 x HDMI 1.4a, 1 x DP 1.2 via Type-C
Media card reader One Micro SD-card 3.0 slot
Power adapter port One 7.4 mm barrel
Security One Noble Wedge security
Table 8. Internal ports and connectors
Description Values
Internal:
M.2 ● One M.2 2230 slot for WiFi and Bluetooth combo card
● One M.2 2230/2242 slot for solid-state drive/eMMC
NOTE: To learn more about the features of different
types of M.2 cards, see the knowledge base article
SLN301626.
Communications
Ethernet
Table 9. Ethernet specifications
Description Values
Model number REALTEK RTL8111HSD PCIe Gigabit Ethernet controller
Transfer rate 10/100/1000 Mbps
Specifications of Latitude 3310 13
Wireless module
Table 10. Wireless module specifications
Description Values
Model number Intel 9560 (160 MHz)
Transfer rate Up to 1733 Mbps
Frequency bands supported 2.4 GHz/5 GHz
Wireless standards WiFi 802.11a/b/g
WiFi 4 (WiFi 802.11n)
WiFi 5 (WiFi 802.11ac)
Encryption ● 64-bit/128-bit WEP
● AES-CCMP
● TKIP
Bluetooth 5.0
Audio
Table 11. Audio specifications
Description Values
Controller REALTEK ALC3246
Stereo conversion Supported
Internal interface High definition audio
External interface Universal audio jack
Speakers Two
Internal speaker amplifier Supported (audio codec integrated)
External volume controls Keyboard shortcut controls
Speaker output:
Average 2 W
Peak 2.5 W
Subwoofer output Not supported
Microphone Supported (Single digital microphone)
Storage
Your computer supports any one of the following configurations:
● One M.2 2242 eMMC
● One M.2 2230 Solid State Drive
14 Specifications of Latitude 3310
Table 12. Storage specifications
Storage type Interface type Capacity
One M.2 2242 eMMC SATA 64 GB
One M.2 2230 Solid state drive PCle 128/256 GB
Media-card reader
Table 13. Media-card reader specifications
Description Values
Type One Micro SD-card 3.0 slot
Cards supported ● microSD
● microSDHC
● microSDXC
Keyboard
Table 14. Keyboard specifications
Description Values
Type ● Single pointing keyboard
● Single pointing backlit keyboard
Layout QWERTY
Number of keys ● United States and Canada: 82 keys
● United Kingdom: 83 keys
● Japan: 84 keys
Size X= 19.05 mm key pitch
Y= 18.05 mm key pitch
Shortcut keys Some keys on your keyboard have two symbols on them.
These keys can be used to type alternate characters or to
perform secondary functions. To type the alternate character,
press Shift and the desired key. To perform secondary
functions, press Fn and the desired key.
NOTE: You can define the primary behavior of the
function keys (F1–F12) changing Function Key Behavior
in BIOS setup program.
Keyboard shortcuts.
Camera
Table 15. Camera specifications
Description Values
Number of cameras One
Specifications of Latitude 3310 15
Table 15. Camera specifications (continued)
Description Values
Type RGB High Definition camera
Location Front camera
Sensor type CMOS sensor technology
Resolution (RGB)
Still image 0.92 megapixel
Video 1280 x 720 at 30 fps
Diagonal viewing angle
Camera 78.6 degrees
Touchpad
The following table lists the touchpad specifications of your Latitude 3310.
Table 16. Touchpad specifications
Description Values
Touchpad resolution:
Horizontal 3220
Vertical 1952
Touchpad dimensions:
Horizontal 105 mm (4.13 in.)
Vertical 65 mm (2.56 in.)
Touchpad gestures For more information about touchpad gestures available on
Windows, see the Microsoft knowledge base article 4027871
at support.microsoft.com.
Power adapter
Table 17. Power adapter specifications
Description Values
Type 65 W
Diameter (connector) 7.4 mm
Input voltage 100 VAC x 240 VAC
Input frequency 50 Hz x 60 Hz
Input current (maximum) 1.50 A
Output current (continuous) 3.34 A
16 Specifications of Latitude 3310
Table 17. Power adapter specifications (continued)
Description Values
Rated output voltage 19.50 VDC
Temperature range:
Operating 0°C to 40°C (32°F to 104°F)
Storage -40°C to 70°C (-40°F to 158°F)
Battery
Table 18. Battery specifications
Description Values
Type Polymer 3C 42 WHr smart
battery with express charge
Polymer 4C 56 WHr smart
battery with express charge
Polymer 4C 56 WHr smart
battery (life cycle)
Voltage 11.40 VDC 15.20 VDC 15.20 VDC
Weight (maximum) 0.44 lb (0.20 Kg) 0.55 lb (0.25 Kg) 0.55 lb (0.25 Kg)
Dimensions:
Height 5.90 mm (0.23 in.) 5.90 mm (0.23 in.) 5.90 mm (0.23 in.)
Width 103.25 mm (4.06 in.) 104.49 mm (4.11 in.) 104.49 mm (4.11 in.)
Depth 191.85 mm (7.55 in.) 242.11 mm (9.53 in.) 242.11 mm (9.53 in.)
Temperature range:
Operating 0°C to 35°C 0°C to 35°C 0°C to 35°C
Storage -20°C to 65°C -20°C to 65°C -20°C to 65°C
Operating time Varies depending on operating
conditions and can significantly
reduce under certain powerintensive conditions.
Varies depending on
operating conditions and
can significantly reduce
under certain power-intensive
conditions.
Varies depending on
operating conditions and
can significantly reduce
under certain power-intensive
conditions.
Charging time (approximate) NOTE: Control the
charging time, duration,
start and end time, and so
on using the Dell Power
Manager application. For
more information on the
Dell Power Manager see
www.dell.com/.
NOTE: Control the
charging time, duration,
start and end time, and so
on using the Dell Power
Manager application. For
more information on the
Dell Power Manager see
www.dell.com/.
● Standard charge: 0°C to
50°C: 4 hours
● Express Charge: 0°C to
15°C: 4 hours; 16°C to
45°C: 2 hours; 46°C to
50°C: 3 hours
NOTE: Control the
charging time, duration,
start and end time, and so
on using the Dell Power
Manager application. For
more information on the
Dell Power Manager see,
Me and My Dell on
https://www.dell.com/
Specifications of Latitude 3310 17
Table 18. Battery specifications (continued)
Description Values
LLC battery only supports the
standard charge.
Life span (approximate) 300 discharge/charge cycles 300 discharge/charge cycles 1000 discharge/charge
cycle on LLC (Long life cycle)
battery
Coin-cell battery CR2032 CR2032 CR2032
Operating time Varies depending on operating
conditions and can significantly
reduce under certain powerintensive conditions.
Varies depending on
operating conditions and
can significantly reduce
under certain power-intensive
conditions.
Varies depending on
operating conditions and
can significantly reduce
under certain power-intensive
conditions.
Display
Table 19. Display specifications
Description Values
Type Full High Definition
Panel technology In-Plane Switching (IPS)
Luminance (typical) 220 nits
Dimensions (active area):
Height 165.24 mm (6.05 in.)
Width 164.97 mm (6.49 in.)
Diagonal 13.3"
Native resolution 1366 x 768
Color gamut 72% (sRGB), 100% (Adobe RGB)
Contrast ratio (min) 0.67
Refresh rate 60 Hz
Horizontal view angle 80 +/- degrees
Vertical view angle 80 +/- degrees
Power consumption (maximum) 65 W
Anti-glare vs glossy finish Anti-Glare
Touch options Yes
18 Specifications of Latitude 3310
Video
Table 20. Integrated graphics specifications
Integrated graphics
Controller External display support Memory size Processor
Intel UHD Grapics 610 1 x HDMI 1.4a, 1 x DP 1.2 via Type-C Shared system memory Intel Celeron DC/
Pentium DC
Intel UHD Graphics 620 1 x HDMI 1.4a, 1 x DP 1.2 via Type-C Shared system memory Intel Core i3/i5
Computer environment
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 21. Computer environment
Description Operating Storage
Temperature range 0°C to 35°C (32°F to 95°F) -40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum) 10% to 90% (non-condensing) 0% to 95% (non-condensing)
Vibration (maximum)*
0.66 GRMS 1.30 GRMS
Shock (maximum) 110 G† 160 G†
Altitude (maximum) -15.2 m to 3048 m (-49.87 ft to 10000
ft)
-15.2 m to 3048 m (-49.87 ft to 10000
ft)
* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse when the hard drive is in use.
Specifications of Latitude 3310 19
Getting help and contacting Dell
Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 22. Self-help resources
Self-help resources Resource location
Information about Dell products and services www.dell.com
My Dell app
Tips
Contact Support In Windows search, type Contact Support, and press
Enter.
Online help for operating system www.dell.com/support/windows
Access top solutions, diagnostics, drivers and downloads, and
learn more about your computer through videos, manuals and
documents.
Your Dell computer is uniquely identified by a Service Tag or
Express Service Code. To view relevant support resources for
your Dell computer, enter the Service Tag or Express Service
Code at www.dell.com/support.
For more information on how to find the Service Tag for your
computer, see Locate the Service Tag on your computer.
Dell knowledge base articles for a variety of computer
concerns
1. Go to www.dell.com/support.
2. On the menu bar at the top of the Support page, select
Support > Knowledge Base.
3. In the Search field on the Knowledge Base page, type the
keyword, topic, or model number, and then click or tap the
search icon to view the related articles.
Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice,
packing slip, bill, or Dell product catalog.
5
20 Getting help and contacting Dell
