Monitor Support
Monitor Support[1]
Supports up to 3 independent displays via onboard ports (1x VGA +2x DisplayPort), more displays support via discrete
graphics
Notes:
1. Onboard VGA and DP ports are only available on the models with integrated graphics
Chipset
Chipset
AMD B450 chipset
Memory
Memory Type
• DDR4-1866
• DDR4-2133
• DDR4-2400
• DDR4-2666
Memory Slots
Four DDR4 DIMM slots, dual-channel capable
Memory Protection
Non-ECC
Max Memory[1]
Up to 64GB DDR4-2666
Notes:
The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the
technology develops.
1.
Storage
Storage Support
Up to three drives, 1x 2.5"/3.5" HDD + 1x 2.5" HDD + 1x M.2 2242/2280 SSD
• 2.5" HDD up to 1TB each
• 3.5" HDD up to 2TB
• M.2 SSD up to 1TB
RAID
RAID 0/1 support for HDDs (RAID preset only available via special bid model)
Storage Type
Disk Type Interface RPM Security
3.5" SATA HDD SATA 6Gb/s 7.2K -
2.5" SATA HDD SATA 6Gb/s 7.2K -
2.5" SATA SSD SATA 6Gb/s - -
2.5" SATA SSD SATA 6Gb/s - Opal
M.2 2242 SSD PCIe NVMe, PCIe 3.0 x2 - -
M.2 2280 SSD PCIe NVMe, PCIe 3.0 x4 - -
M.2 2280 SSD PCIe NVMe, PCIe 3.0 x4 - Opal
Removable Storage
Optical
• DVD-ROM, SATA 1.5Gb/s, slim (9.0mm)
• DVD burner (DVD±RW), SATA 1.5Gb/s, slim (9.0mm)
• None
Card Reader
• 7-in-1 card reader
• No card reader
Multi-Media
Audio Chip
High Definition (HD) Audio, Realtek® ALC662 codec
Speakers
• Single speaker, 1W x1
• No speakers
Power Supply
Power Supply
Power Type Efficiency Key Features
180W Fixed 85% -
210W Fixed 85% -
260W Fixed 92% -
DESIGN
Input Device
Keyboard
• Lenovo Calliope Keyboard (USB connector), black
• Lenovo Calliope Wireless Keyboard (2.4GHz via USB receiver), black
• Lenovo Keyboard (PS/2 connector), black
• Lenovo Traditional Keyboard (USB connector), black
• No keyboard
Mouse
• Lenovo Calliope Wireless Mouse (2.4GHz via USB receiver), black
• Lenovo Calliope Mouse (USB connector), black
• Lenovo Mouse (PS/2 connector), black (only available via special bid)
• Lenovo Fingerprint Mouse (USB connector), Windows Hello support, black
• No mouse
Mechanical

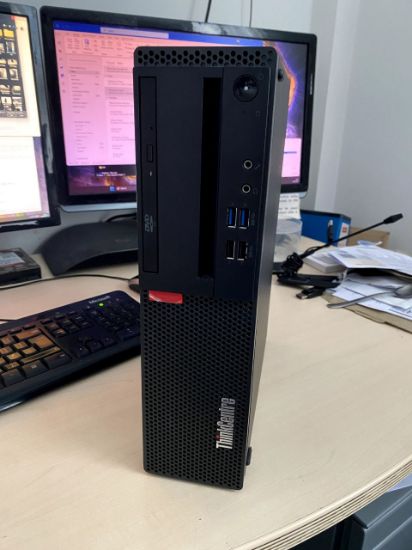

Form Factor
SFF (8.4L)
Dimensions (WxDxH)
92.5 x 290.5 x 343.5 mm (3.6 x 11.4 x 13.5 inches)
Weight
6.0 kg (13.2 lbs)
Case Color
Black
Bays
• 1x slim ODD bay
• 1x 2.5" disk bay (bay comes with disk)
• 1x 3.5" disk bay
Expansion Slots
One PCIe 3.0 x16, low-profie (length < 150mm, height < 68mm)
• Two PCIe 2.0 x1, low-profie (length < 150mm, height < 68mm)
• One PCI 3.0, low-profie (length < 150mm, height < 68mm)
• Two M.2 slots (one for WLAN, one for SSD)
EOU
Toolless cover, disk, optical assembly / removal
Stand
• Vertical stand
• No stand
Others
(Optional) Dust Filter
CONNECTIVITY
Network
Onboard Ethernet
Gigabit Ethernet, Realtek RTL8111EPV, 1x RJ45, supports Wake-on-LAN
Optional Ethernet
• Gigabit Ethernet, Bitland BN8E88, 1x RJ-45, PCIe x1
• No optional Ethernet
WLAN + Bluetooth™
• Realtek RTL8821CE, 802.11ac Dual Band 1x1 Wi-Fi + Bluetooth 4.2, M.2 card
• Qualcomm® QCA9377, 802.11ac Dual Band 1x1 Wi-Fi + Bluetooth 4.2, M.2 card
• Qualcomm QCA6174A, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 4.2, M.2 card
• Realtek RTL8822BE, 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 4.2, M.2 card
• No WLAN and Bluetooth
Ports[1]
Front Ports
• 2x USB 3.1 Gen 1
• 2x USB 3.1 Gen 2
• 1x microphone (3.5mm)
• 1x headphone (3.5mm)
Optional Front Ports
• 1x card reader
• USB-C 3.1 Gen2 Two Ports (PCIe x4 Card)
Rear Ports[2]
• 2x USB 2.0
• 2x USB 3.1 Gen 1
• 1x serial (9-pin)
• 2x PS/2 ports (keyboard/mouse)
• 1x Ethernet (RJ-45)
• 1x VGA
• 1x microphone (3.5mm)
• 1x line-in (3.5mm)
• 1x line-out (3.5mm)
• 2x DisplayPort
Optional Rear Ports
• 2x USB 2.0 (Via 2-port adapter)
• 1x serial
• 1x parallel
Notes:
The transfer speed of following ports will vary and, depending on many factors, such as the processing speed of the host device, file
attributes and other factors related to system configuration and your operating environment, will be slower than theoretical speed.
USB 2.0: 480 Mbit/s;
USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formely USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formely USB 3.1 Gen 2): 10 Gbit/s;
USB 3.2 Gen 2x2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
Thunderbolt™ 3: 40 Gbit/s;
FireWire 400: 400 Mbit/s;
FireWire 800: 800 Mbit/s
2. For video ports on discrete graphics, please see graphics section
Monitor Cable
Monitor Cable
• DP to VGA dongle
• DP to dual DP dongle
• DP to DVI-D dongle
• DP to HDMI® 1.4 dongle
• DP to VGA Cable (1.5M)
• No monitor cable
SECURITY & PRIVACY
Security
Security Chip
Discrete TPM 2.0, TCG certified
Physical Locks
• Kensington® Security Slot
• Padlock Loop
• (Optional) Smart Cable Clip
Chassis Intrusion Switch
• Chassis intrusion switch
• No chassis intrusion switch
Fingerprint Reader
• Touch style fingerprint reader on mouse
• No fingerprint reader
BIOS Security
• Power-on password
• Administrator password
• Hard disk password
• Boot sequence control
• Boot without keyboard and mouse
• Smart USB protection (allows keyboard / mouse only, blocks all storage devices)
• Individual USB port disablement
